Mitutoyo is committed to future product development that applies breakthrough technologies to its full range of dimensional measurement tools, instruments and systems.

QMS is a full-service representative of Mitutoyo. Call or e-mail us for a no-obligation application analysis.

Starrett HDV300

Innovative new system combining the power of the Optical Comparator with digital video, hi-resolution cameras, telecentric optics and LED illumination.

Utilizes digital overlay part design file (DXF) for comparing the inspected part to its design profile, similar to using a Mylar overlay chart on a comparator screen.

Intuitive M3 programming power and simple operator display interface make part measuring efficient and highly productive.

Features & Specifications:

  • Large measuring travel
  • Quick action interchangeable lens system
  • Rugged design suitable for many manufacturing environments
  • Benchtop mounting
  • DXF CAD import and overlay measurement software
  • 24" touch screen monitor
  • LED illumination

Watch Video of the Starrett HDV300



Starrett AVR 300 M3

The AVR300 CNC vision system offers 12" x 8" x 8" travel, Z-axis measuring, a powerful MetLogix software control system, 6.5:1 (optional 12:1) zoom optics and several LED illumination options. These systems are general-purpose CNC video-based measurement systems, ideal for quality assurance, inspection labs, manufacturing, assembly and research facilities. A precision mechanical bearing X-Y-Z stage and column translates data accurately and repeatably to the MetLogix software. This compact bench top system is precise and powerful!

View specifications

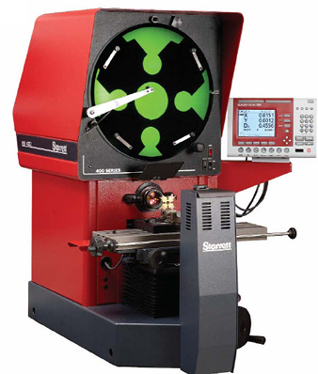

Starrett Starrett-HB400

A robust, compact horizontal axis bench top projector, the leader in its class and the one all others are compared against.

The HB400 provides a vertically correct image on a
fully useable 16" (400mm) diameter screen. With a
significantly larger measuring capacity, this projector
provides a measurement range previously only
possible on floor-standing units.

View specifications

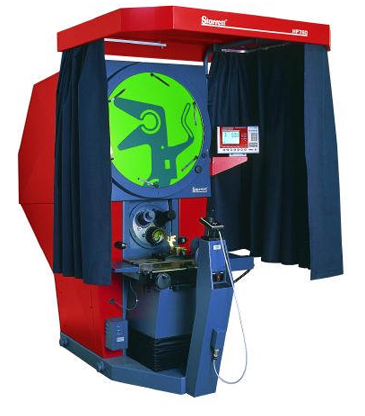

Starrett Starrett-HF750

The same exemplary build standards as the HF600, the HF750 super capacity optical comparator delivers benefits from an even larger 30" (762mm) screen. This large, fully usable screen sets a new standard for clarity and brightness.

Ideal for use over a broad spectrum of industries and applications the HF750 projector is designed and built to satisfy the requirements of measuring small to large work pieces with total precision, ruggedness and efficiency.

Side bed models, HS600 and HS750, are also available

Visit for specifications
