HD4I is a solutions provider for your High Definition video system needs for inspection and quality control. Offering a variety of HD products from 720p to 1080p resolution cameras, and monitors ranging in size from 22" up to 46", HD4I can help provide a solution that will fit into your budget.

Choose from a number of different HD cameras that are available through HD4I. With resolutions from 720p up to Full HD 1080p, we can help you determine which camera is right for your needs. All cameras connect directly to the monitor via a DVI-D or HDMI single cable. Camera functions include either manual or automatic White Balance, Auto Gain and Auto Shutter, as well as a variety of brightness and contrast control. For manual metrology systems, our cameras have built in crosshairs that can generate solid crosslines on screen that are stable without the flutter and noise of a standard analog camera and crosshair generator.

HD Cameras

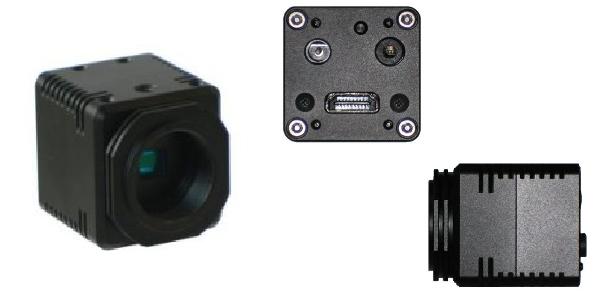

CCD Camera(720p)

• SXGA Progressive Scan CCD Sensor (1280 x720)
• Good Sensitivity & Color Replication
• HD 720P at 60 or 50 FPS
• True 16:9 Aspect Ratio (No Scaling)
• DVI (Digital Visual Interface) Output via HDMI
• Dual Function Push Button (User Programmable)
• UART Serial Communication
• Dimensions WxHxD(mm) (40x40x45.8)
• 1/3" Sensor Size

CMOS Camera(720p)

• SXGA Progressive Scan CMOS Sensor (1329x1049)
• 3.63micron pixel size
• RGB Digital Video Output
• DVI (Digital Visual Interface) via DVI-D
• 60fps
• Dimensions WxHxD(mm)(44x29x78)
• 1/3" Sensor Size

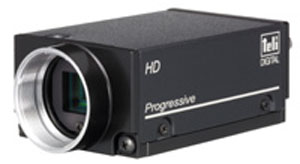

CMOS Camera(1080p)

• HD1080p Progressive Scan CMOS Sensor (2144x1588)
• 2.5micron pixel size
• C-Mount interface
• RGB Digital Video Output
• DVI (Digital Visual Interface) via DVI-D
• 1/2.8" Sensor Size
• 60fps
• Dimensions WxHxD(mm)(44x29x78)
