Increased productivity with HEIDENHAIN

Products from HEIDENHAIN ensure that machines and plants work productively and efficiently. Since 1948, when the company began anew in Traunreut, HEIDENHAIN has shipped over 5 million linear encoders, over ten million rotary and angular encoders, 550,000 digital readouts and nearly 225,000 TNC controls. Now and in the future, this expertise provides the assurance that HEIDENHAIN was the right choice.

A continuous drive to provide technically superior products in combination with reliability, closeness to the customer, and a practice-oriented frame of mind form the basis of HEIDENHAIN’s efforts. HEIDENHAIN has always sought a dialog with science and research on the one hand and with users and customers on the other. Our competence in the area of linear and angular metrology is reflected by a large number of customized solutions for users. These include the measuring and test equipment developed and built for many of the world’s standards laboratories and the angular encoders for various telescopes and satellite receiving antennas. The products in the standard HEIDENHAIN product program naturally profit from the knowledge gained in such projects.

Position Display Units

Position display units serve to visualize the values measured with linear encoders, length gauges, rotary encoders or angle encoders.

Areas of application include:

  • Measuring and inspection equipment
  • Dividing apparatuses
  • Monitoring of measuring equipment
  • Manual machine tools
  • Measuring machines

Position displays from HEIDENHAIN are designed to be highly user-friendly.

Typical characteristics are:

  • Highly readable, alphanumeric display
  • Simple, logically arranged keypad
  • Ergonomically designed push-button keys
  • Splash-protected front panel
  • Sturdy die-cast housing

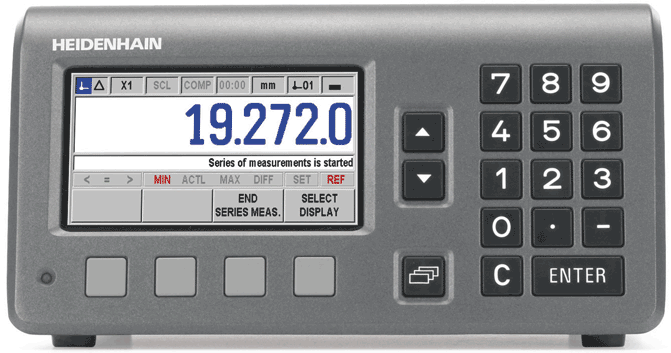

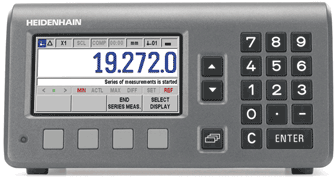

ND 200
Measured value display units for length and angle




ND 500

Digital readouts on milling machines or lathes for two and three axes



ND 700
Digital readouts on milling machines or lathes for two and three axes
