CMM-Manager: A full featured CMM software package


CMM-Manager is a task-oriented, highly intuitive CMM software package for both manual and CNC coordinate measuring machines. It is a fully integrated environment featuring walk-in quick-measure, one-click CAD-measure, collision-free CAD-teach, virtual simulation, real-time verification, advanced path planning, CAD alignment, datum alignment and many more smart functions. Object oriented interface allows easy program creation without seeing complex text programming language.

CMM-Manager also offers flexible yet easy-to-use functionalities, including graphical probe configuration management, automatic tip calibration, cross section scanning and group feature measurement.



Plug-n-Play Interface to most DCC, Manual and Portable CMM's

-Nikon iGPS / iProbe

Numerous Direct Interfaces for Manual and DCC CMM's

  • DCC CMM's including Nikon, LK, Brown and Sharpe, Mitutoyo, Zeiss, Renishaw and more
  • Manual CMM's either through direct interface or by Insight Metrology Retrofit Kit
  • Portable / Articulated Arms
  • Probing Systems including Renishaw PH10, PH20, SP25 Scanning, Zeiss RDS and ST, Vision / Camera Systems

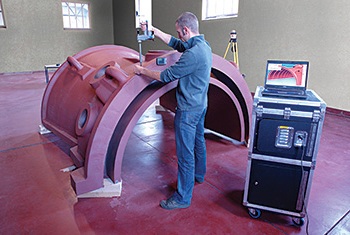

  • Large Scale Metrology including Nikon K-CMM and iGPS

Available Software Options

  • Standard Version Allows CAD Import and Export
  • Lite Version allows CAD Export only
  • Native CAD Import allows import of Pro-E, SolidWorks, CATIA, UG, etc.
  • Gear Module
  • Vision Module










CMM-Manager Software: Features & Benefits

Fully Integrated Measurement System

  • Task oriented working environment with intuitive interface design, easy to learn and easy to use.
  • Walk-in measurement for quick dimension check

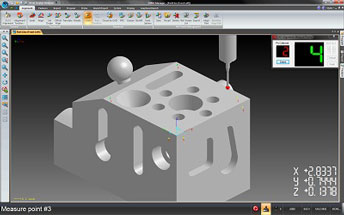

  • One-click automatic CAD-measure
  • Collision-free CAD-teach
  • Virtual simulation and real-time verification

Advanced Path Planning

  • Automatic probing angle selection
  • Collision detection and collision avoidance
  • Inspection path optimization
  • Automatic Tip Calibration

Powerful Alignment Tools

  • Iterative datum alignment to improve the accuracy and repeatability of the alignment results for datum points distributed on prismatic surfaces as well as free-form sculptured surfaces
  • CAD alignment for free-form surfaces
  • 3-2-1 alignment for prismatic datum features

Reverse Engineering Support

  • Actual measured data exported to CAD can be used to take your reverse engineering application to new heights of efficiency and accuracy.
  • Exporting actual measured data to an IGES, DXF or ASCII file format
